Auto Parts Inspection--Pin Measurement



Application description:

Measure auto parts’ pin pitch and true positions of them. Precision is required to be 0.1mm.



Products used:

Bi-telecentric lens TTL18.5-105-160C, mono camera with resolution of 20M



Highlights:

Bi-telecentric lenses receive only collimated light and feature large DOF, perfectly solving the problem that connectors are unable to be detected due to heights difference, colors and materials nonuniformities between its pins and the housing.

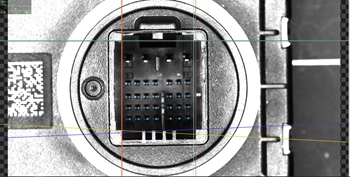

Demonstration for solution design
