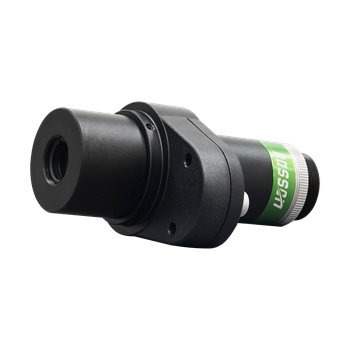

Liquid Lens Series
BASSON liquid telecentric lens series has the performance characteristics of high telecentricity, low distortion rate, cost-efficient, and is suitable for high magnification and deep DOF industrial measurement. Liquid telecentric lens series is compatible with standard C telecentric lens mount. It is available for industrial cameras with sensor size of up to 2/3" (11.5mm diagonal).
lActual measured within full range of DOF, full range of FOV, and full range of wave length
lDistortion:＜0.05% Telecentricity:＜0.05°
lWorking distance can be adjusted within certain limits
lTG+ multi-layer coating, high transmittance
lIndustrial grade waterproofing
Data
Specifications on Liquid Lens Series Support up to 2/3" Sensors (11.5mm diagonal)
|
Model |
Magnification |
WD（mm） |
Object Side Resolution（μm） |
DOF（mm） |
NA |
Actural Measured Telecentricity（°） |
Actural Measured Distortion（%） |
2/3” |
11.5mm |
Lens Mount |
||||
|
H |
V |
D |
H |
V |
D |
|||||||||
|
8.4 |
7.0 |
11.0 |
8.8 |
7.3 |
11.5 |
|||||||||
|
SUTY1152065C |
2.0 |
56.7-74.3 |
4.360 |
0.16 |
0.0769 |
＜0.05 |
＜0.05 |
4.2 |
3.5 |
5.5 |
4.4 |
3.7 |
5.7 |
C |
