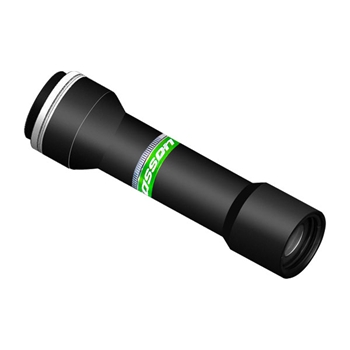

STS23 Series

With high telecentricity and low distortion, BASSON bi-telecentric lenses are mainly applied to precision measurement and high-precision visual positioning fields.
BASSON STS23 Series Standard Bi-telecentric Lenses are standard F-mount lenses, available for industrial cameras with maximum sensor size of 4/3” (diagonal of 23mm).

lActual measured with full range of DOF, full range of FOV, and full range of wave length

lAvailable for Industrial Cameras with Sensor Size from 1/3” to 35Full

lLarge FOV from 11.5mm-315mm

lDistortion: <0.05% Telecentricity: <0.05°

lTG+ multi-layer coating, high transmittance

lOptions between high resolution and deep DOF are available

lCustomized aperture is available

lWorking distance can be adjusted within certain limits

lIndustrial grade waterproofing

Data

Lenses with High Resolution

Model	Magnification	WD（mm）	Object Side Resolution（μm）	DOF（mm）	NA	Actural Measured Telecentricity（°）	Actural Measured Distortion（%）	4/3"			23mm			Lens Mount
								H	V	D	H	V	D
								18.9	10.6	22.0	18.4	13.8	23.0
STS23025050F	0.920	50±5	5.47	0.44	0.0613	＜0.05	＜0.05	20	11	23	20	15	25	F
STS23035060F	0.657	60±5	7.66	0.87	0.0438	＜0.05	＜0.05	28	16	33	28	21	35	F
STS23045070F	0.511	70±5	9.85	1.44	0.0341	＜0.05	＜0.05	37	20	43	36	27	45	F
STS23060080F	0.383	80±5	13.13	2.55	0.0256	＜0.05	＜0.05	49	27	57	48	36	60	F
STS23070150F	0.329	150±5	15.32	3.47	0.0219	＜0.05	＜0.05	57	32	66	56	42	70	F
STS23085150F	0.271	150±5	18.60	5.12	0.0180	＜0.05	＜0.05	69	39	81	68	51	85	F
STS23105160F	0.219	160±5	22.97	7.82	0.0146	＜0.05	＜0.05	86	48	100	84	63	105	F
STS23125200F	0.184	220±5	27.35	11.08	0.0123	＜0.05	＜0.05	102	57	119	100	75	125	F
STS23155320F	0.148	320±5	33.91	17.03	0.0099	＜0.05	＜0.05	127	71	148	124	93	155	F
STS23155320FL	0.148	320±5	33.91	17.03	0.0099	＜0.05	＜0.05	127	71	148	124	93	155	F
STS23185320F	0.124	320±5	40.48	24.26	0.0083	＜0.05	＜0.05	152	85	176	148	111	185	F
STS23185320FL	0.124	320±5	40.48	24.26	0.0083	＜0.05	＜0.05	152	85	176	148	111	185	F
STS23215380F	0.107	380±5	47.04	32.77	0.0071	＜0.05	＜0.05	176	99	205	172	129	215	F
STS23215380FL	0.107	380±5	47.04	32.77	0.0071	＜0.05	＜0.05	176	99	205	172	129	215	F
STS23245380F	0.094	380±5	53.61	42.55	0.0063	＜0.05	＜0.05	201	113	234	196	147	245	F
STS23245380FL	0.094	380±5	53.61	42.55	0.0063	＜0.05	＜0.05	201	113	234	196	147	245	F
STS23270480F	0.085	480±5	59.08	51.68	0.0057	＜0.05	＜0.05	222	124	258	216	162	270	F
STS23270480FL	0.085	480±5	59.08	51.68	0.0057	＜0.05	＜0.05	222	124	258	216	162	270	F
STS23315545F	0.073	545±5	68.92	70.34	0.0049	＜0.05	＜0.05	259	145	301	252	189	315	F

Lenses with Deep DOF

Model	Magnification	WD（mm）	Object Side Resolution（μm）	DOF（mm）	NA	Actural Measured Telecentricity（°）	Actural Measured Distortion（%）	4/3"			23mm			Lens Mount
								H	V	D	H	V	D
								18.9	10.6	22.0	18.4	13.8	23.0
STS23025050F-D	0.920	50±5	11.67	0.95	0.0288	＜0.05	＜0.05	20	11	23	20	15	25	F
STS23035060F-D	0.657	60±5	16.34	1.85	0.0205	＜0.05	＜0.05	28	16	33	28	21	35	F
STS23045070F-D	0.511	70±5	21.01	3.06	0.0160	＜0.05	＜0.05	37	20	43	36	27	45	F
STS23060080F-D	0.383	80±5	28.01	5.44	0.0120	＜0.05	＜0.05	49	27	57	48	36	60	F
STS23070150F-D	0.329	150±5	32.67	7.41	0.0103	＜0.05	＜0.05	57	32	66	56	42	70	F
STS23085125F-D	0.271	150±5	39.68	10.93	0.0085	＜0.05	＜0.05	69	39	81	68	51	85	F
STS23105160F-D	0.219	160±5	49.01	16.67	0.0069	＜0.05	＜0.05	86	48	100	84	63	105	F
STS23125200F-D	0.184	220±5	58.35	23.63	0.0058	＜0.05	＜0.05	102	57	119	100	75	125	F
STS23155320F-D	0.148	320±5	72.35	36.33	0.0046	＜0.05	＜0.05	127	71	148	124	93	155	F
STS23155320FL-D	0.148	320±5	72.35	36.33	0.0046	＜0.05	＜0.05	127	71	148	124	93	155	F
STS23185320F-D	0.124	320±5	86.35	51.76	0.0039	＜0.05	＜0.05	152	85	176	148	111	185	F
STS23185320FL-D	0.124	320±5	86.35	51.76	0.0039	＜0.05	＜0.05	152	85	176	148	111	185	F
STS23215380F-D	0.107	380±5	100.36	69.91	0.0033	＜0.05	＜0.05	176	99	205	172	129	215	F
STS23215380FL-D	0.107	380±5	100.36	69.91	0.0033	＜0.05	＜0.05	176	99	205	172	129	215	F
STS23245380F-D	0.094	380±5	114.36	90.78	0.0029	＜0.05	＜0.05	201	113	234	196	147	245	F
STS23245380FL-D	0.094	380±5	114.36	90.78	0.0029	＜0.05	＜0.05	201	113	234	196	147	245	F
STS23270480F-D	0.085	480±5	126.03	110.25	0.0027	＜0.05	＜0.05	222	124	258	216	162	270	F
STS23270480FL-D	0.085	480±5	126.03	110.25	0.0027	＜0.05	＜0.05	222	124	258	216	162	270	F
STS23315545F-D	0.073	545±5	147.04	150.06	0.0023	＜0.05	＜0.05	259	145	301	252	189	315	F
