SUT110 Series
At present, telecentric lenses are widely used for inspection and measurement in the field of R&D, medical, security, measurement, automated inspection, etc. SUT110 series telecentric lenses have two types of products, lenses with high resolution and lenses with deep DOF, satisfying different technical requirements. The lens mount is standard C-mount and the working distance remains at 110mm under different magnifications.
lActual measured with full range of DOF, full range of FOV, and full range of wave length
lDistortion: <0.05% Telecentricity: <0.05°
lOptions between high resolution and deep DOF are available
lTG+ multi-layer coating, high transmittance
lHigh cost performance, suitable for systems used for batch testing and inspection
lCustomized aperture is available
lIndustrial grade waterproofing
Data
Lenses with High Resolution
|
Model |
Magnification |
WD（mm） |
Object Side Resolution（μm） |
DOF（mm） |
NA |
Actural Measured Telecentricity（°） |
Actural Measured Distortion（%） |
2/3” |
11.5mm |
Lens Mount |
||||
|
H |
V |
D |
H |
V |
D |
|||||||||
|
8.4 |
7.0 |
11.0 |
8.8 |
7.3 |
11.5 |
|||||||||
|
SUT1105110C |
0.5 |
110 |
12.078 |
1.80 |
0.0278 |
＜0.05 |
＜0.05 |
16.9 |
14.1 |
22.0 |
17.6 |
14.7 |
23.0 |
C |
|
SUT1108110C |
0.8 |
110 |
6.710 |
0.63 |
0.0500 |
＜0.05 |
＜0.05 |
10.5 |
8.8 |
13.7 |
11.0 |
9.2 |
14.3 |
C |
|
SUT1110110C |
1.0 |
110 |
7.381 |
0.55 |
0.0455 |
＜0.05 |
＜0.05 |
8.4 |
7.0 |
11.0 |
8.8 |
7.3 |
11.5 |
C |
|
SUT1110110CT |
1.0 |
110 |
7.381 |
0.55 |
0.0455 |
＜0.05 |
＜0.05 |
8.4 |
7.0 |
11.0 |
8.8 |
7.3 |
11.5 |
C |
|
SUT1115110C |
1.5 |
110 |
4.920 |
0.24 |
0.0682 |
＜0.05 |
＜0.05 |
5.6 |
4.7 |
7.3 |
5.8 |
4.9 |
7.6 |
C |
|
SUT1120110C |
2.0 |
110 |
4.362 |
0.16 |
0.0769 |
＜0.05 |
＜0.05 |
4.2 |
3.5 |
5.5 |
4.4 |
3.7 |
5.7 |
C |
|
SUT1120110CT |
2.0 |
110 |
4.362 |
0.16 |
0.0769 |
＜0.05 |
＜0.05 |
4.2 |
3.5 |
5.5 |
4.4 |
3.7 |
5.7 |
C |
|
SUT1180110C |
8.0 |
110 |
3.523 |
0.03 |
0.0952 |
＜0.05 |
＜0.05 |
1.0 |
0.8 |
1.3 |
1.1 |
0.9 |
1.4 |
C |
|
SUT1180110CT |
8.0 |
110 |
3.523 |
0.03 |
0.0952 |
＜0.05 |
＜0.05 |
1.0 |
0.8 |
1.3 |
1.1 |
0.9 |
1.4 |
C |
|
SUT11100110C |
10.0 |
110 |
3.221 |
0.02 |
0.2989 |
＜0.05 |
＜0.05 |
0.8 |
0.7 |
1.1 |
0.8 |
0.7 |
1.1 |
C |
|
SUT11100110CT |
10.0 |
110 |
3.221 |
0.02 |
0.2989 |
＜0.05 |
＜0.05 |
0.8 |
0.7 |
1.1 |
0.8 |
0.7 |
1.1 |
C |
|
Model |
Magnification |
WD（mm） |
Object Side Resolution（μm） |
DOF（mm） |
NA |
Actural Measured Telecentricity（°） |
Actural Measured Distortion（%） |
1” |
1.1” |
Lens Mount |
||||
|
H |
V |
D |
H |
V |
D |
|||||||||
|
12.8 |
9.6 |
16.0 |
14.1 |
10.3 |
17.6 |
|||||||||
|
SUTZ1710110C |
1.0 |
110 |
12.080 |
0.90 |
0.0566 |
＜0.05 |
＜0.05 |
12.8 |
9.6 |
16.0 |
14.1 |
10.3 |
17.6 |
C |
|
SUTZ1740110C |
4.0 |
110 |
4.360 |
0.08 |
0.2500 |
＜0.05 |
＜0.05 |
3.2 |
2.4 |
4.0 |
3.5 |
2.5 |
4.4 |
C |
|
Model |
Magnification |
WD（mm） |
Object Side Resolution（μm） |
DOF（mm） |
NA |
Actural Measured Telecentricity（°） |
Actural Measured Distortion（%） |
1.1” |
18.5mm |
Lens Mount |
||||
|
H |
V |
D |
H |
V |
D |
|||||||||
|
14.1 |
10.3 |
17.6 |
14.8 |
11.1 |
18.5 |
|||||||||
|
SUT1850110C |
5.0 |
110 |
3.360 |
0.05 |
0.1000 |
＜0.05 |
＜0.05 |
2.8 |
2.0 |
3.5 |
2.9 |
2.2 |
3.7 |
C |
|
Model |
Magnification |
WD（mm） |
Object Side Resolution（μm） |
DOF（mm） |
NA |
Actural Measured Telecentricity（°） |
Actural Measured Distortion（%） |
1.1” |
18.5mm |
Lens Mount |
||||
|
H |
V |
D |
H |
V |
D |
|||||||||
|
14.1 |
10.3 |
17.6 |
14.8 |
11.1 |
18.5 |
|||||||||
|
SUTZ1815110C |
1.5 |
110 |
12.080 |
0.60 |
0.0278 |
＜0.05 |
＜0.05 |
9.4 |
6.9 |
11.7 |
9.8 |
7.4 |
12.3 |
C |
|
SUTZ1860110C |
6.0 |
110 |
4.360 |
0.05 |
0.0770 |
＜0.05 |
＜0.05 |
2.3 |
1.73 |
2.9 |
2.4 |
1.8 |
3.0 |
C |
|
Model |
Magnification |
WD（mm） |
Object Side Resolution（μm） |
DOF（mm） |
NA |
Actural Measured Telecentricity（°） |
Actural Measured Distortion（%） |
23mm |
28mm |
Lens Mount |
||||
|
H |
V |
D |
H |
V |
D |
|||||||||
|
18.4 |
13.8 |
23.0 |
22.4 |
16.8 |
28.0 |
|||||||||
|
SUTZ2815110F |
1.5 |
110 |
12.080 |
0.60 |
0.0279 |
＜0.05 |
＜0.05 |
12.2 |
9.2 |
15.3 |
14.9 |
11.2 |
18.6 |
F |
|
SUTZ2860110F |
6.0 |
110 |
4.360 |
0.05 |
0.769 |
＜0.05 |
＜0.05 |
3.0 |
2.3 |
3.8 |
3.7 |
2.8 |
4.6 |
F |
|
SUTZ2860110FT |
6.0 |
110 |
4.360 |
0.05 |
0.0769 |
＜0.05 |
＜0.05 |
3.0 |
2.3 |
3.8 |
3.7 |
2.8 |
4.6 |
F |
Specifications on Lens Series Maximum Supports to 42mm Sensors or 8K 5um Line Scan Cameras
|
Model |
Magnification |
WD（mm） |
Object Side Resolution（μm） |
DOF（mm） |
NA |
Actural Measured Telecentricity（°） |
Actural Measured Distortion（%） |
8K-5um |
35FULL |
Lens Mount |
||
|
D |
H |
V |
D |
|||||||||
|
41.0 |
33.6 |
25.2 |
42.0 |
|||||||||
|
SUT4420110M58T |
2.0 |
110 |
2.68-7.45 |
0.10-0.28 |
0.045-0.125 |
＜0.1 |
＜0.05 |
20.5 |
16.8 |
12.6 |
21.0 |
V/M58 |
Lenses with Deep DOF
|
Model |
Magnification |
WD（mm） |
Object Side Resolution（μm） |
DOF（mm） |
NA |
Actural Measured Telecentricity（°） |
Actural Measured Distortion（%） |
2/3” |
11.5mm |
Lens Mount |
||||
|
H |
V |
D |
H |
V |
D |
|||||||||
|
8.4 |
7.0 |
11.0 |
8.8 |
7.3 |
11.5 |
|||||||||
|
SUT1105110C-D |
0.5 |
110 |
24.156 |
3.60 |
0.0139 |
＜0.05 |
＜0.05 |
16.9 |
14.1 |
22.0 |
17.6 |
14.7 |
23.0 |
C |
|
SUT1108110C-D |
0.8 |
110 |
13.420 |
1.25 |
0.0250 |
＜0.05 |
＜0.05 |
10.5 |
8.8 |
13.7 |
11.0 |
9.2 |
14.3 |
C |
|

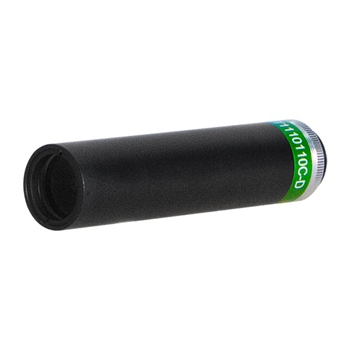

SUT1110110C-D |
1.0 |
110 |
10.736 |
0.80 |
0.0313 |
＜0.05 |
＜0.05 |
8.4 |
7.0 |
11.0 |
8.8 |
7.3 |
11.5 |
C |
|
SUT1110110CT-D |
1.0 |
110 |
10.736 |
0.80 |
0.0313 |
＜0.05 |
＜0.05 |
8.4 |
7.0 |
11.0 |
8.8 |
7.3 |
11.5 |
C |
|
SUT1115110C-D |
1.5 |
110 |
8.950 |
0.44 |
0.0375 |
＜0.05 |
＜0.05 |
5.6 |
4.7 |
7.3 |
5.8 |
4.9 |
7.6 |
C |
|
SUT1120110C-D |
2.0 |
110 |
6.710 |
0.25 |
0.0500 |
＜0.05 |
＜0.05 |
4.2 |
3.5 |
5.5 |
4.4 |
3.7 |
5.7 |
C |
|
SUT1120110CT-D |
2.0 |
110 |
6.710 |
0.25 |
0.0500 |
＜0.05 |
＜0.05 |
4.2 |
3.5 |
5.5 |
4.4 |
3.7 |
5.7 |
C |
